Keysight 4156C Semiconductor Parameter Analyzer with 1 Femtoamp Resolution 200V High-Power SMU and Desktop EasyEXPERT Software

Brand Name : Keysight (Agilent)

Model Number : 4156C

Certification : ce

Place of Origin : Malaysia

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : in stock

Packaging Details : carton

Product name : Semiconductor Parameter Analyzer

Form Factor : Rackmount

Measurement Frequency Range : 50 MHz

Condition : Pre-Owned

Functions : Tested, in Full Working Conditions

Color : Grey

Contact Now

Keysight (Agilent) 4156C Precision Semiconductor Parameter Analyzer
Product Overview

The Agilent 4156C Precision Semiconductor Parameter Analyzer is a highly accurate laboratory bench top solution for advanced device characterization. The 41501B Expander extends your capabilities to 1A/200V, and adds a low noise ground unit and dual pulse generators on the 4156C.

You can also control your 4155B/C or 4156B/C parameter analyzer from a PC with Desktop EasyEXPERT software. The new version of Agilent Desktop EasyEXPERT software, which is included with the 4155C/4156C, is able to control the Agilent 4155B/C and 4156B/C parameter analyzers.

General Features
  • Highly accurate laboratory bench top parameter analyzer for advanced device characterization
  • 4x High-resolution SMU, 2xVSU and 2xVMU
  • Fill-in-the-blanks front panel operation
  • Includes Desktop EasyEXPERT software for PC-based GUI instrument control
Measurement Capabilities
  • 1 femtoamp and 0.2 microvolt measurement resolution
  • QSCV, Stress Mode, Knob-sweep, Stand-by function
  • +/- 200 Volts and +/- 1 Amp High-Power SMU, Pulse Generator capabilities available by optional 41501B
Desktop EasyEXPERT Software
  • Intuitive, task-oriented approach to parametric test
  • Furnished with over 80 pre-defined, user-modifiable application tests
  • Automatically save data to hard disk drive or any networked drive
  • Offline data analysis and application test development via Desktop EasyEXPERT software
Available Options
Option Code Description
010Delete 4x kelvin triaxial cables
020Delete Windows Controller for Parametric Analysis and Characterization
0KNSelf paced training
2001.5m interlock, 4x coaxial, 4x kelvin triaxial cables
2303.0m interlock, 4x coaxial, 4x kelvin triaxial cables
41501BPulse Generator and Expander Unit for the 4155C/4156C
A6JANSI Z540 compliant calibration with test data
ABAU.S. Quick Users Guide (English localization)
ABJJapan Quick Users Guide (Japanese localization)
L25Int opt I/CV 3.0 Parallel Security Key
L26Int opt I/CV 3.0 USB Security Key
L27Not 4156C-DIV 3.0
L28Not 4156C-DIV 3.0 (Japanese Localize)
L90Int opt 100V TEST
L91Int opt 120V TEST
L92Int opt 220V TEST
L93Int opt 240V TEST
PARParallel Security Key
RMKTAgilent Refurbished Product (Do Not Use - Certiprime Option)
UK6Commercial calibration with test results data
USBUSB Security Key

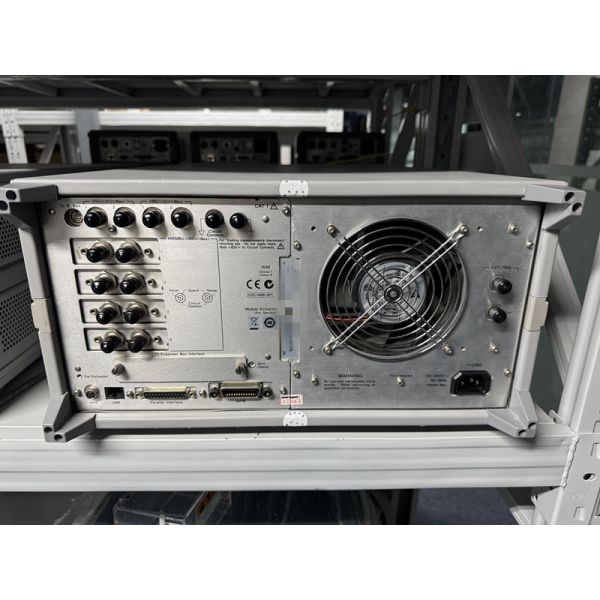

Product Images
